Invisacook 2 Ring Cooktop

Available in 110V and 220V versions

220 V is about 25% faster and about 10% more powerful than 110V version and requires a dedicated 220V line.

110 V is more suitable for occasional cooking or heating and it works from a regular  110V power outlet.

Please inquire or read the operating manual for more details on power requirements.



DESCRIPTION

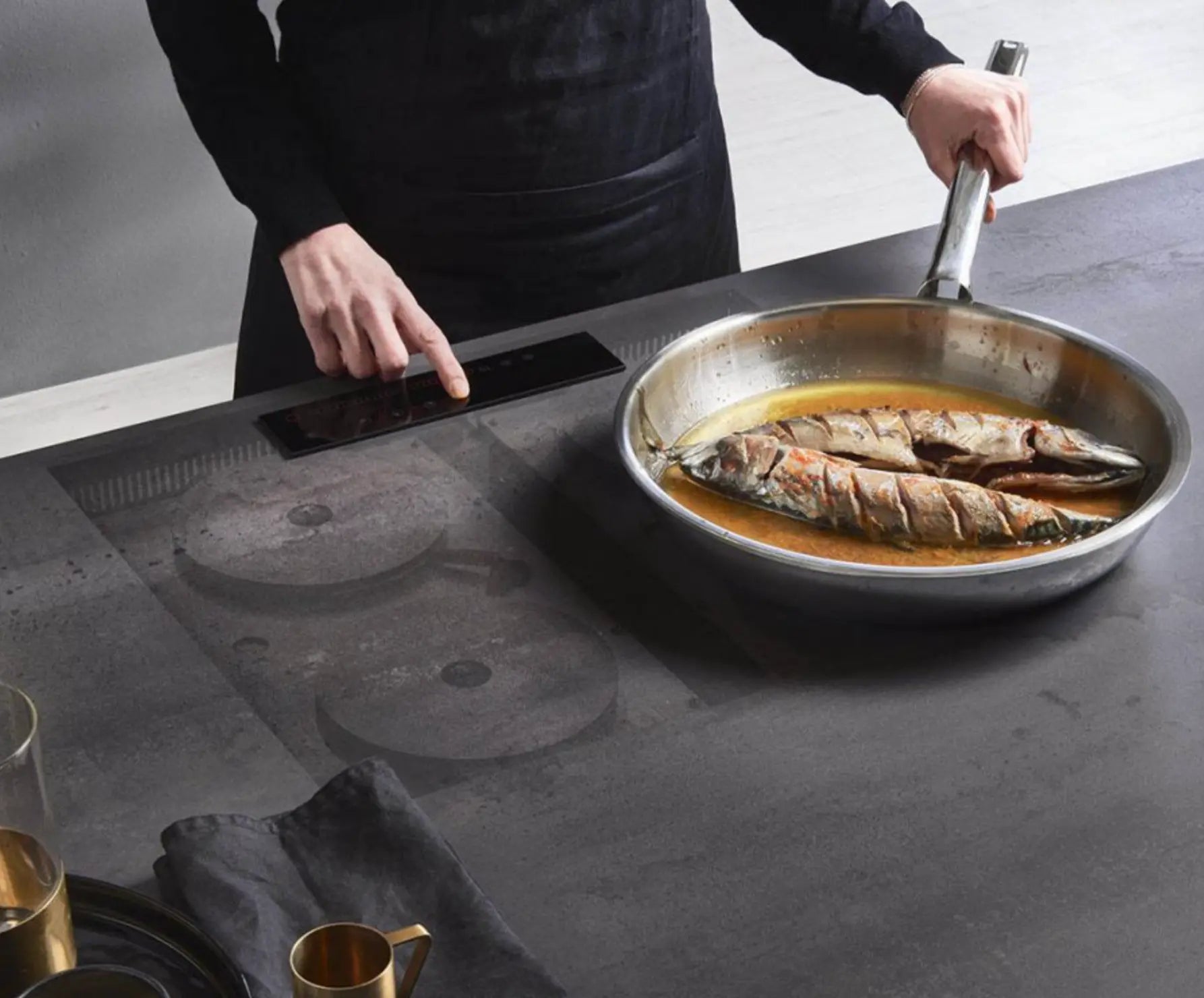

INVISACOOK–2 Burner Unit is a complete, self- contained system. It has 2 induction points to cook thru your Porcelain countertop, evenly and sufficiently. While it has a controller, it can also be controlled thru Wi-Fi using your Invisacook App.

FEATURES
• 2 separate burning unit elements
• Power Boost option for faster speed.
• Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.

• Designed for Under-mount installation for any countertop surface in any way possible.


Model Numbers:

110V = 8120-256-001

220V = 8121-257-001



ELECTRICAL AND MECHANICAL SPECIFICATIONS

Dimension

Description

Dimension

510 x 305 x 50mm (20 x 11 1/2 x 2 3/16)

Bottom Size

480 x 275 x 49.5mm (19 5/16 x 11 1/4 x 2)

Recommended material

Max thickness is 12mm porcelain

Controller top dimensions:

289x84x23mm (Approx: 11 3/8 x 3 5/16)

Controller bottom dimensions:

258x60mm (Approx: 10 1/4 x 2 3/8)

Connector plug Regular grounded 110V



220V

Connection

Description

AC Input

220/240Vac 50/60HZ

Wattage

2,200 W ( Total Power Shared ), 8,5 Amps

Power


Platen Burner Size

1600w + 1400w (Up+Down)



210mm + 180mm

Connector plug Nema 15-30



110V

Connection

Description

AC Input

110/120 V

Wattage

1,800 W ( Total Power Shared ) - 8 Amps

Power

12400w + 1200w (Up+Down)

Platen Burner Size 210mm + 180mm



Product Downloads:

2 burner spec sheet 110v

2 burner spec sheet 220v

Installation and instruction manual

Invisamat brochure



Countertop materials:


Two countertop materials are recommended to be used with Invisacook:

1st choice:  the ultra-compact porcelain material that is 12mm thick or milled to 12mm or 1/2" (Lapitec, Laminam, Infinity Surfaces, Caesarstone Porcelain, Florim Stone, Moderno, etc….). We recommend porcelain for best results.

and

2nd choice: All-natural hard stones: granite that is milled to 1.5cm in the area of the cooktop and some other ultra compact surfaces and natural stones such as Quartzite that are heat resistant. When choosing natural stones, please consult your stone fabricator to approve due to possible fragile nature of the stone or uneven heat distribution, especially in some intense colored spot areas and read and understand the natural stone disclosure PDF)


Popular man made quartz countertops are NOT supported. Quartz contains resin that stains with heat from hot pots and pans and will quickly turn ugly and will void the warranty of stone.
