Invisacook 5 Ring Cooktop
Invisacook 5 Ring Cooktop
DESCRIPTION

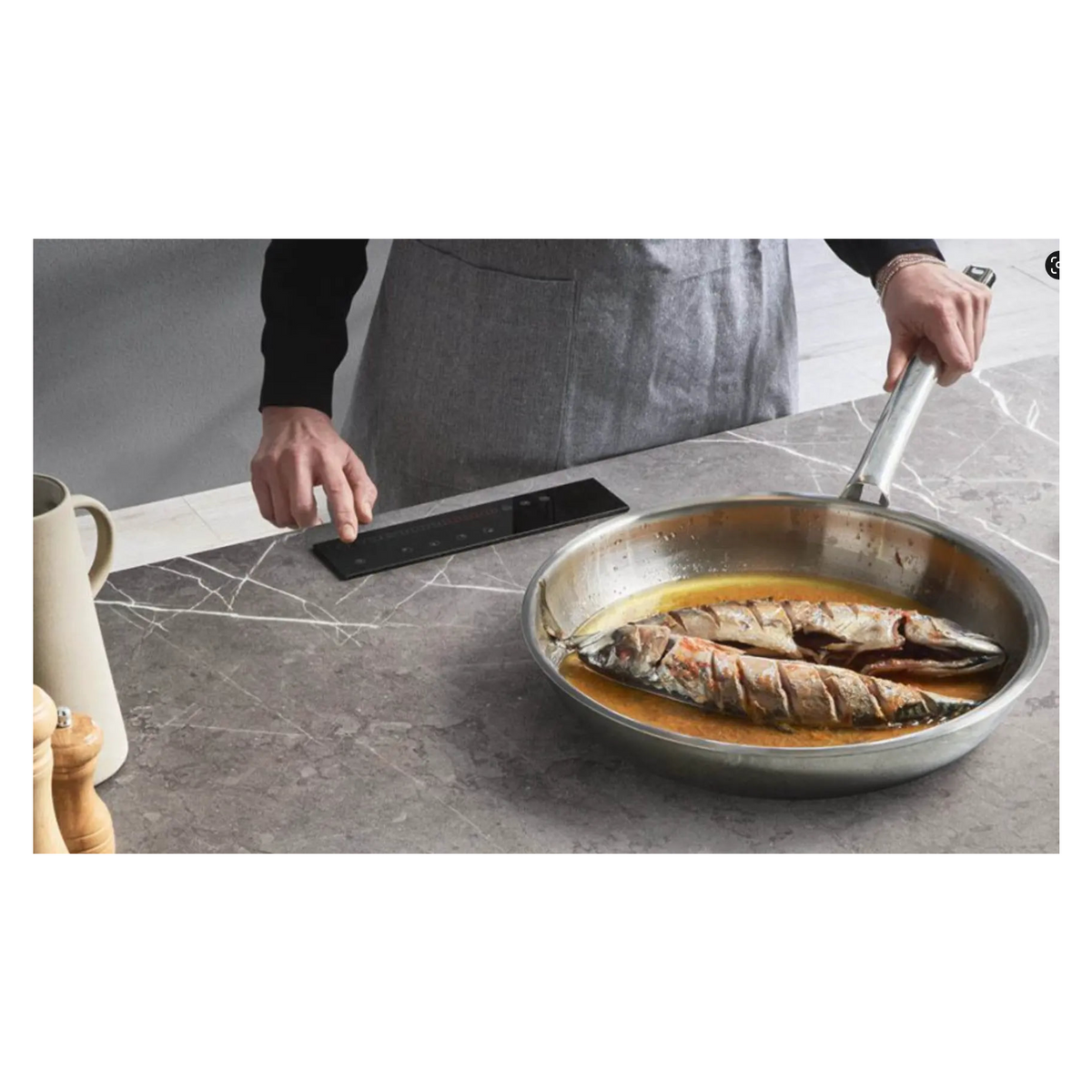

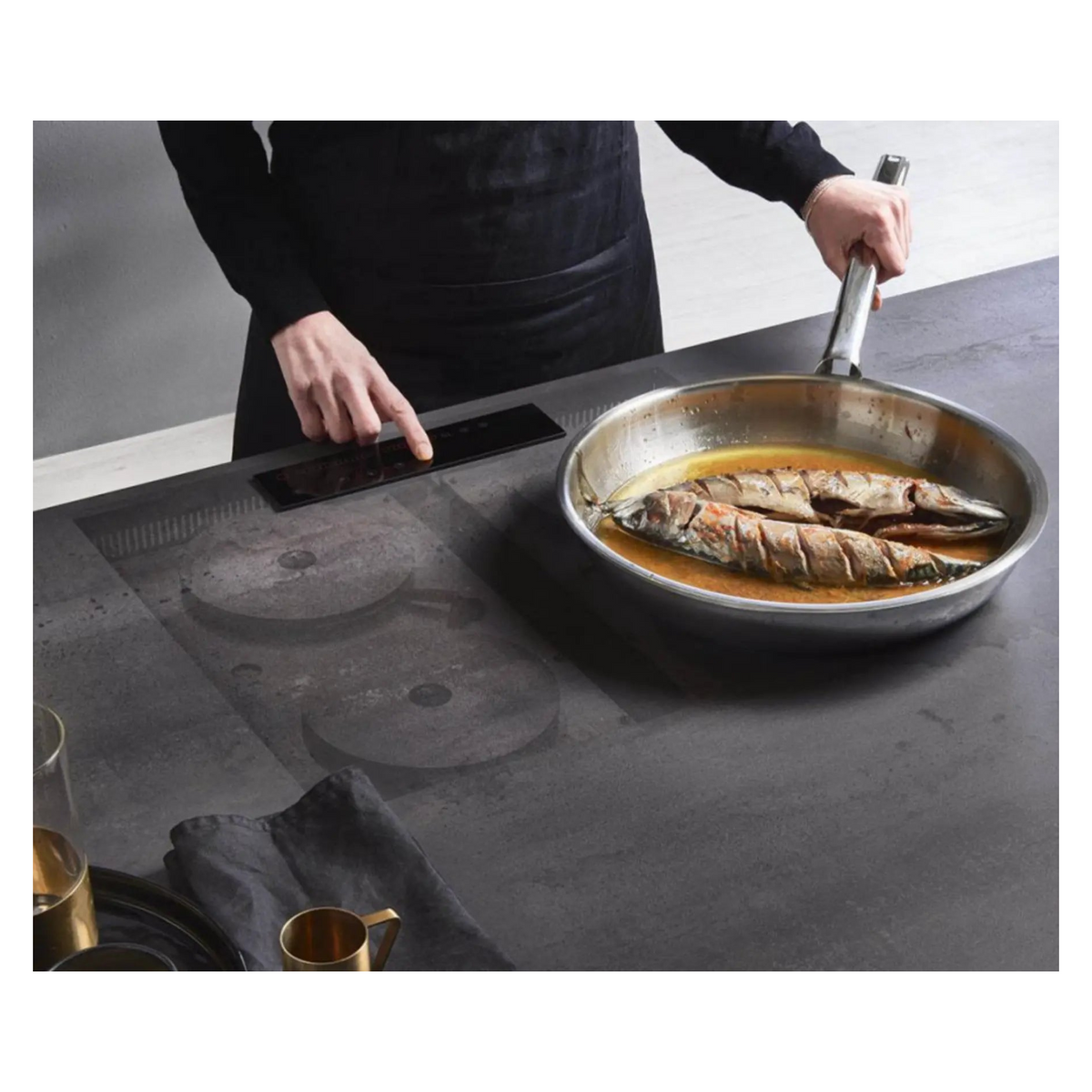

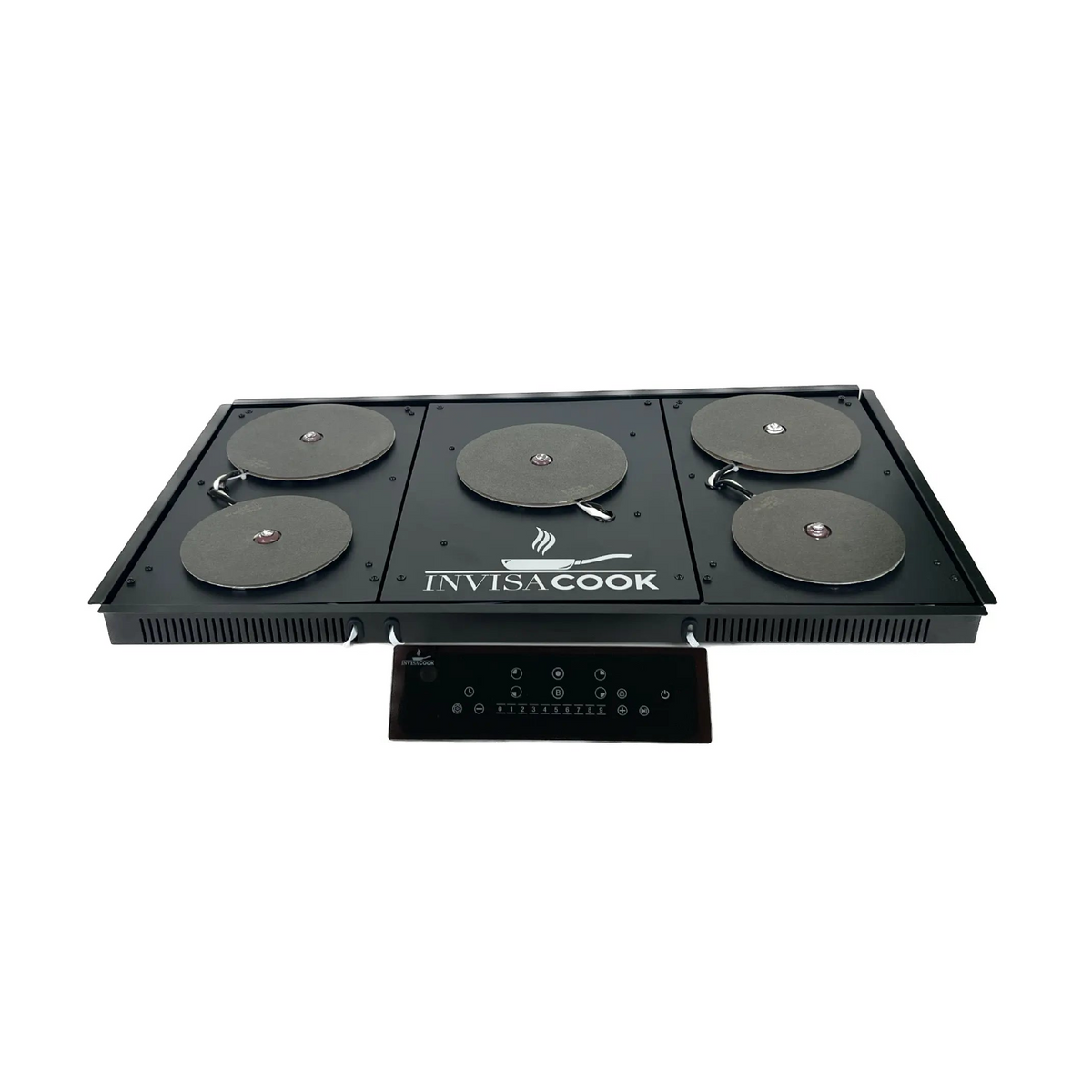

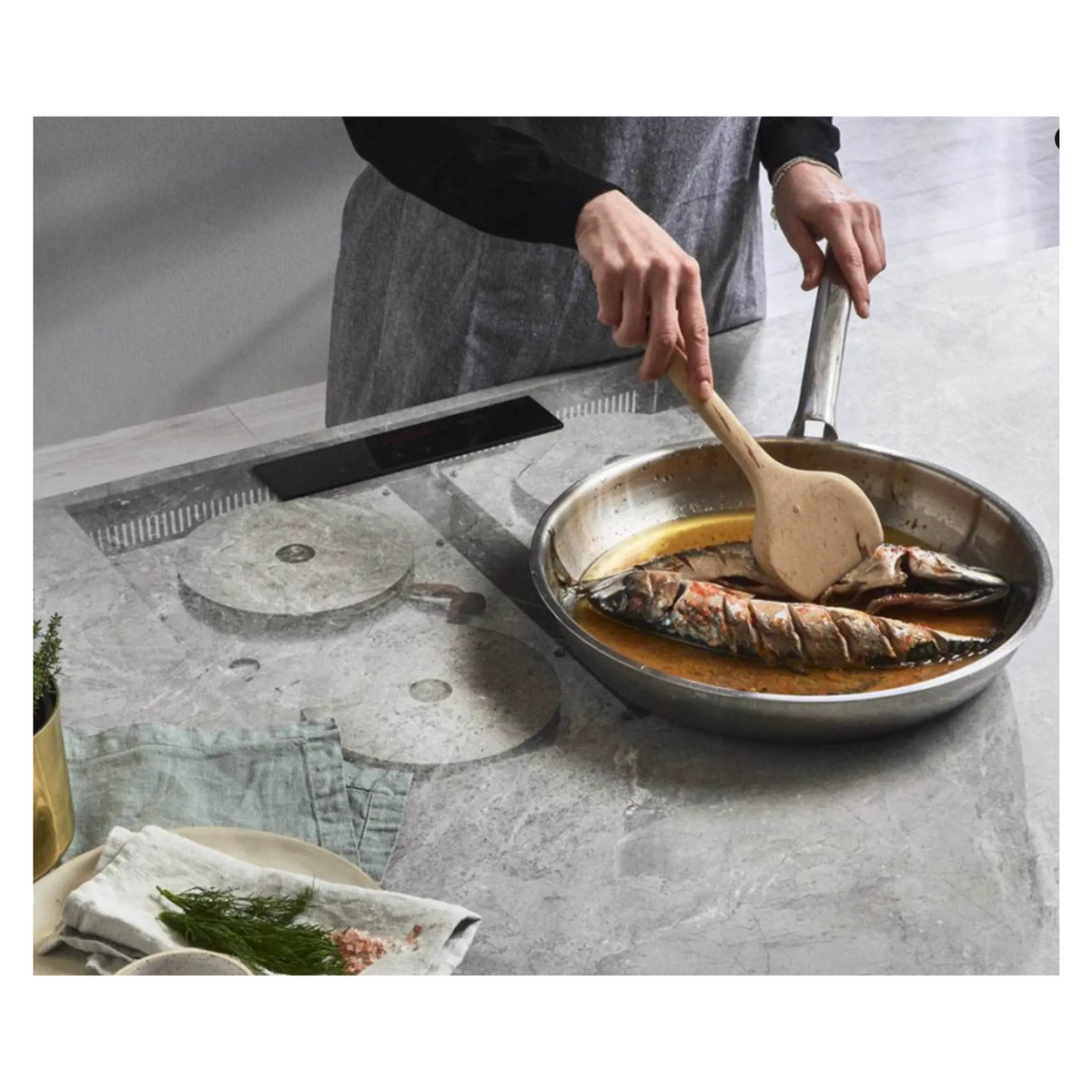

INVISACOOK–5 Burner Unit is a complete, self- contained system. It has 5 induction points to cook thru your Porcelain countertop, evenly and sufficiently. While it has a controller, it can also be controlled thru Wi-Fi using your Invisacook App.
FEATURES
• 5 separate burning unit elements
• Power Boost option for faster speed.
• Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.
• Designed for Under-mounting installation for any suggested countertop surface in any way possible.
Model Number # 8150-256-001
APPLICATIONS
5 Burner unit can be used in these options and materials:
- Typical House Kitchen
- Multi-Family (Apartments)
- Boats / RVs / Airplanes
- Tiny Houses
- Outdoor Kitchens
- Entertaining Islands or Tables
- Cooking Carts
- Materials – Porcelain
ELECTRICAL AND MECHANICAL SPECIFICATIONS

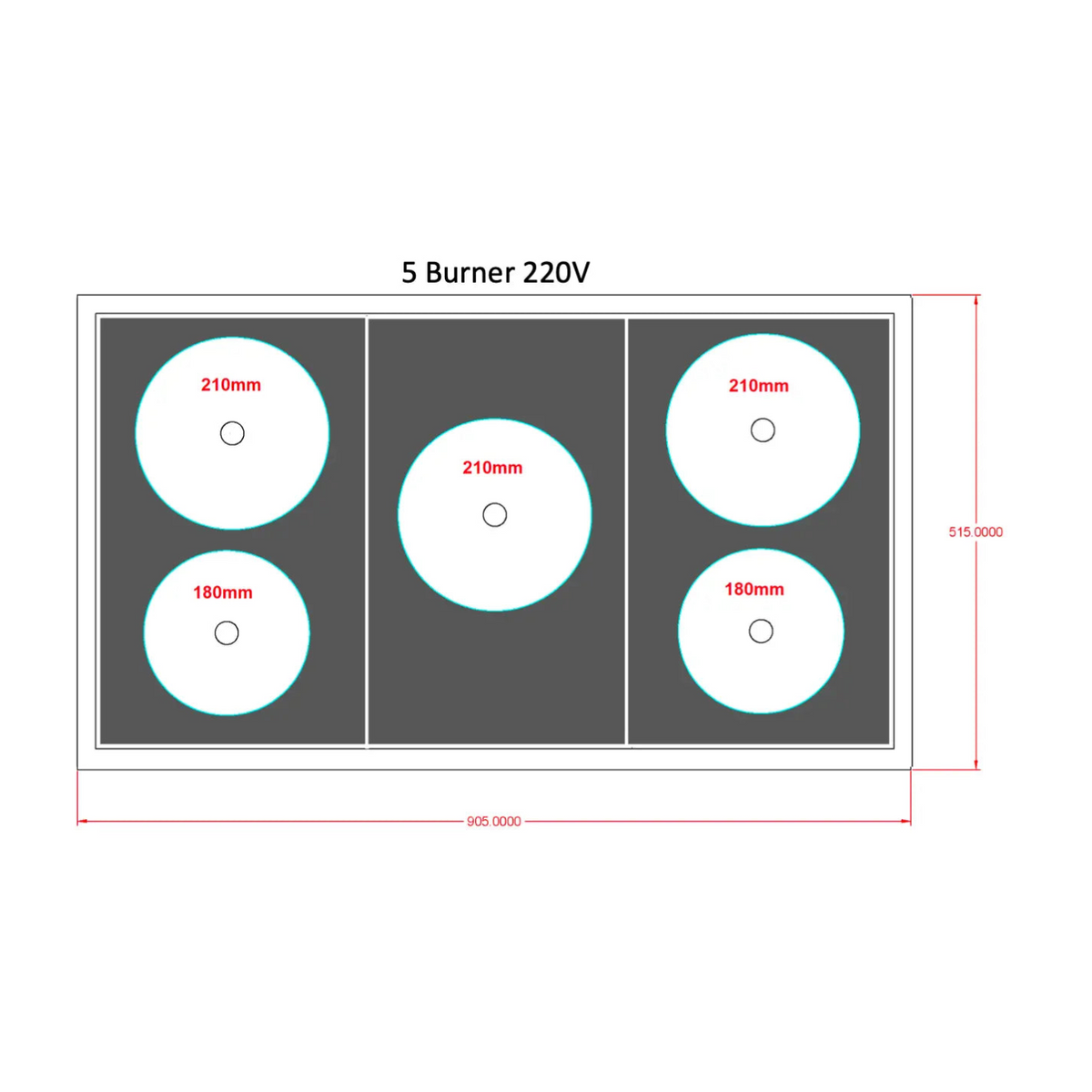

Dimension
905 x 515 x 55mm (Approx. 35 5/8 x 20 9/32 x 2 3/16)
Bottom Size
870 x 480 x 49.5mm (Approx.34 1/4 x 18 7/8 x 2)
Recommended material
Max thickness is 1.5cm Porcelain
Controller top dimensions:
289x84x23mm (Approx: 11 3/8 x 3 5/16)
Controller bottom dimensions:
258x60mm (Approx: 10 1/4 x 2 3/8)
Connection
AC Input
220-240Vac 50/60HZ
Wattage
5,600 W ( Total Power Shared )
Max Power Per Burner
1200w + 1200w + 1500w + 1200w + 1200w
Platen Burner Size
180mm – 180mm – 230mm – 180mm – 180mm
Connector plug: Nema 15-30
TEMPERATURE
Operating Cooking Temps
97°F min /400 °F max. (36°C min / 205°C max.)
WARRANTY
INVISACOOK – 5 Burner Unit – Individual is covered by a two-year consumer warranty that provides product replacement only and a three-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.
PRODUCT REGULATORY REQUIREMENTS
Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.
PRODUCT SAFETY
IEC60950-1 (International)
Product Downloads:
Installation and instruction manual
Countertop materials:
Two countertop materials are recommended to be used with Invisacook: the all-natural stone granite that is milled to 1.5cm in the area of the cooktop and the ultra-compact porcelain material that is 12mm thick or milled to 12mm or 1/2" (Dekton, Sapienstone, Infinity Surfaces, Lapitec, Laminam, etc….). We recommend porcelain for best results.
Some other ultra compact surfaces and natural stones that are heat resistant like Quartzite can work case by case but are not recommended due to possible fragile nature of the stone or uneven heat distribution.
Popular man made quartz countertops or natural marble countertops are not supported.
